Datos del producto:
Pago y Envío Términos:
|
| Condición: | Nuevo | Carga nominal: | 23T |
|---|---|---|---|
| Marca del motor: | Weichai | Potencia del motor: | 178kw |
| Dimensión: | 8716X3030X3500mm | Dimensión de la bifurcación: | 1500X230X110mm |

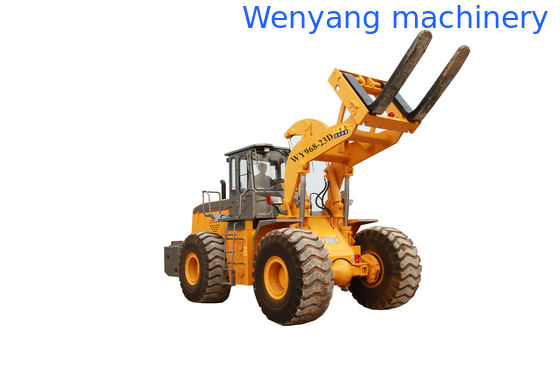

Cross-country ability 23 ton granite shovel loader with pallet fork with max lifting height 3480mm
Superior performance:
Cross-country---to integrate advantages of cross-country forklift and wheel loader, also strengthened and improved systematically.
Safe---The strengthened whole machine system and driving room with safe designed, using of safe guard.
Energy-saving---top-grade WEICHAI engine which with multinomial patents and special technology, fuel-efficient and high efficiency and durable.
Multifunction---with fork or bucket for dual-purpose, driver’s cab can be used with or without safety guard and guardrail to carry out a tractor serves several purposes.
| Description | Specification | Unit | ||||
| Rated power | 178 | KW/h | ||||
| Overall dimension(L x W x H) | with fork | 8716X3030X3500 | mm | |||
| Max.lifting height | 3480 | mm | ||||
| Operating weight | 26000 | kg | ||||
| Rated Load / 2800mm | 23000 | kg | ||||
| Rated load/1600mm | 25000 | kg | ||||
| Bucket capacity | 2.3 | m3 | ||||
|
Dimensions of fork |
(L x W x H) | 1500X230X110 | mm | |||
| Distance of fork | 1270 | mm | ||||
| Rated loading capacity | 23000 | kg | ||||
| Driver’s guard | Height | 1680 | mm | |||
| Turning angle | +/-35 | ° | ||||
| Turning radius | 7350 | mm | ||||
| Wheel base | 3500 | mm | ||||
| Tread | 2300 | mm | ||||
| Min.Ground clearance | 430 | mm | ||||
| Unloading angle | 18 | ° | ||||
| ( with fork ) Haul location height (Ground clearance of material) | 300 | mm | ||||
| Fuel tank capacity | 380 | L | ||||
| Hydraulic fuel tank capacity | 320 | L | ||||
| Specification of tyre | 26.5-25 | |||||
| Engine System | ||||||
| Model | WEICHAI ------WD10G240E21 | |||||
| Rated power | 178kw(240hp) | |||||
| Type | Top-grade Diesel WEICHAI engine, co-worker of German Deutz Company and AVL technology, Austria; 6 Cylinders, Turbocharged Intercooled, with multinomial patents, synthesize multilevel compound desert air filter technology, high efficiency, low noise and cooling technology, especially using in dusty environment. | |||||
